Deluxe

abc Deluxe Folding Arm Awning
abc Deluxe Folding Arm Awning
abc Sun Control Systems Deluxe

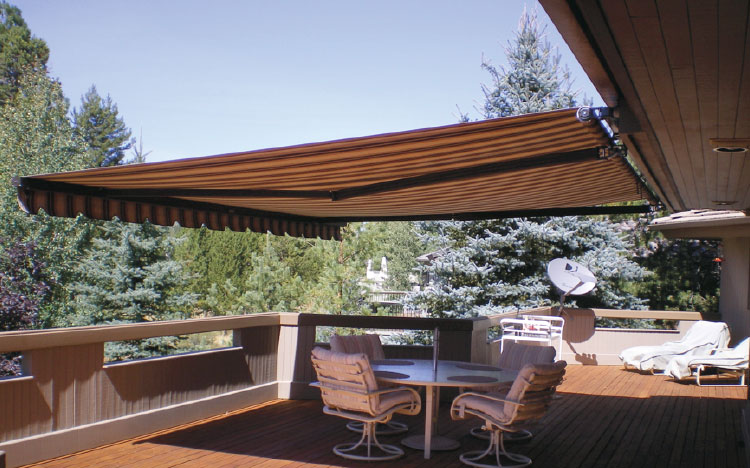

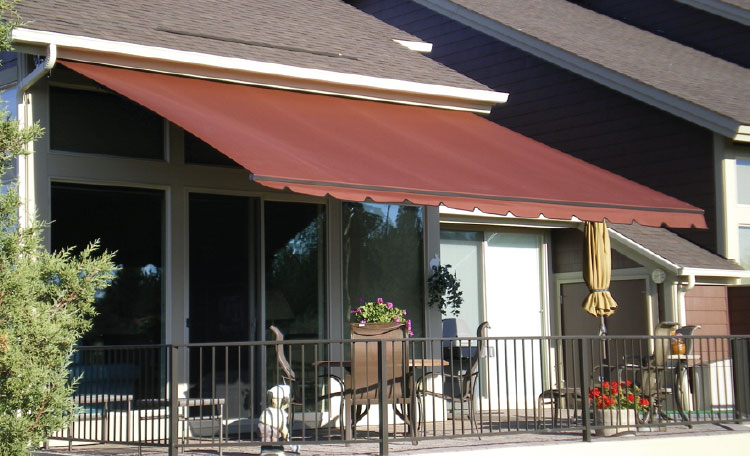

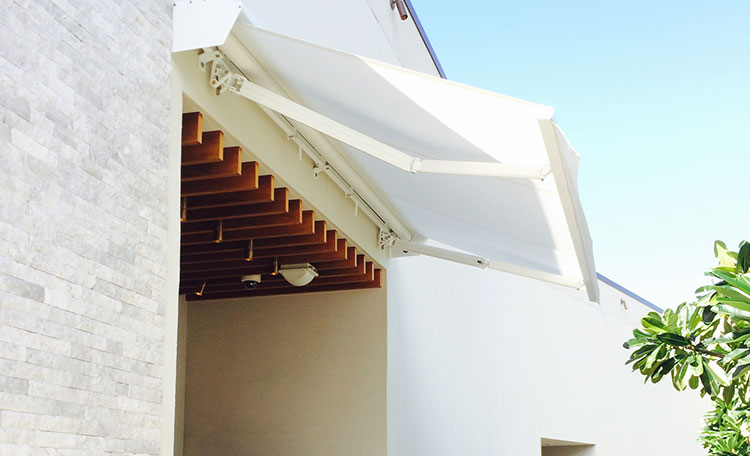

The abc Deluxe lateral arm retractable awning is based on the enhanced system developed in Sweden by EGE Westin AB. This system incorporates the latest advancements including a variable pitch adjustment for the arms and an energy absorbing shoulder. abc imports the critical components of this system from EGE Sweden, and assembles them at our North Hollywood factory to produce one of the most reliable time proven lateral arm awning systems available today. Hardware is available in White, Sand and Bronze colors.

Standard operation is by smooth German Geiger bevel gears and crank, or by optional Somfy 500 or 600 series motors depending of the size of the unit. Motors can be operated by switch or remote control, or integrated into other automated controls.

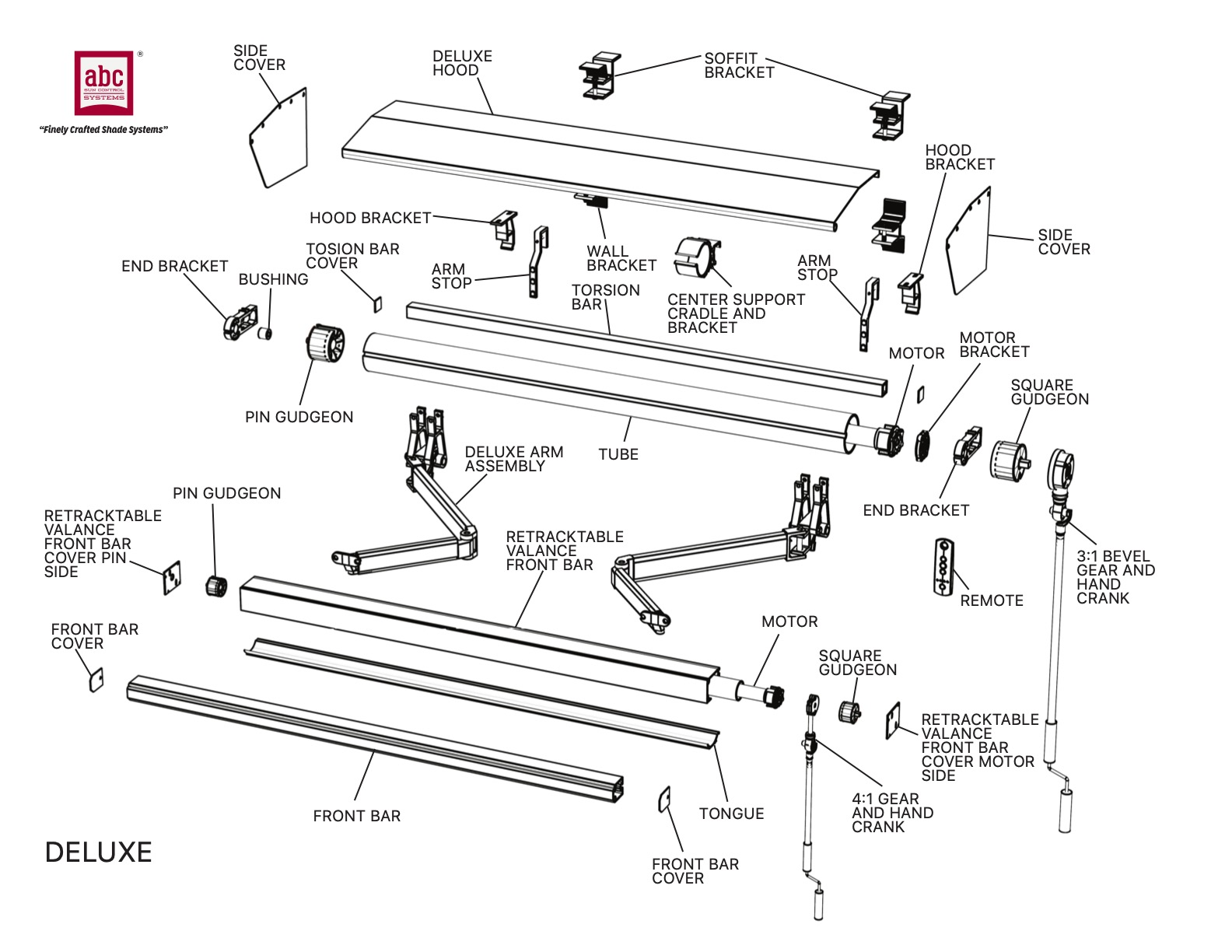

Arms are constructed utilizing double tensioned springs connected to the forearm with stainless steel chain. The torsion bar, front bar, roller tube, wall and hood brackets and arm profiles are all manufactured with powder coated extruded high quality aluminum.

Options include: Heavy gauge extruded aluminum hood and retractable valance.

PRODUCT SPECIFICATIONS
Linear Width 5'1" - 40'
Projection 4'1", 5'9", 6'10", 8'6", 10'2", 12'
Frame Finish Polyester Powder Coated
Frame Colors* White white Sand sand Bronze bronze (Custom Colors - Upcharge)
Mounting Options Wall, Soffit, Roof
Roller Tube 78mm
Torsion Bar 35mm
Pitch Adjustment 0º - 45º
Fabric Protection Optional Hood with Side Covers
Unit Operation Manual Geiger Bevel Gear or Somfy Motor
Retractable Valance Manual or Motorized, 4' Drop
Fabric Options 100% Solution Dyed Acrylics
Valance Options 9 Standard Choices or Dealer Custom Design
* Color Swatch is for Reference Only.
