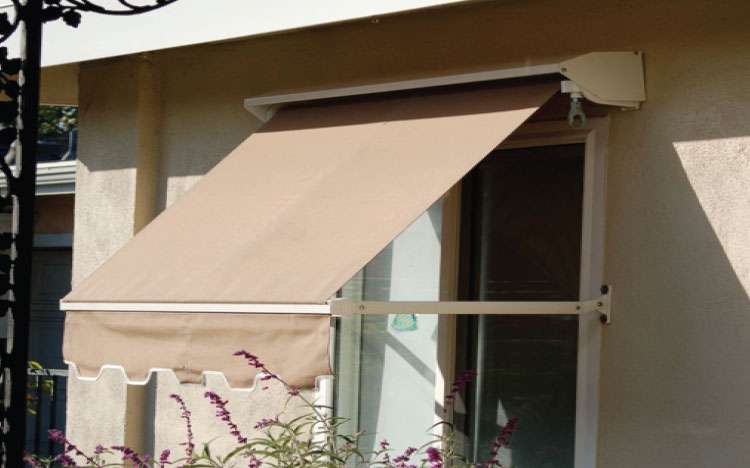

The Robusta large drop arm window awning is a rugged and versatile retractable window awning that can be operated by manual hand crank (exterior) or motorized control. The spring-tensioned arms can be lowered from a retracted position to within an amazing 15 degrees from vertical for low angle sun protection.

The robust components allow for wide width applications that can span up to 25’ or more. A heavy guage stylish aluminum hood is also available for protection on the fabric and mechanisms.

PRODUCT SPECIFICATIONS
Linear Width 5' - 25'
Projection 2'6" - 5'
Frame Finish Polyester Powder Coated
Frame Colors* White white Ivory ivory Sand sand Bronze bronze
Mounting Options Wall, Soffit
Roller Tube 70mm, 78mm
Projection Arms Spring Loaded
Pitch Adjustment 0º - 160º
Fabric Protection Optional Hood
Mode of Operation Manual Bevel Gear or Somfy Motor
Fabric Options Sunscreen and Awning Fabrics
* Color Swatch is for Reference Only.
