Stobag Airomatic

Stobag-Airomatic
Stobag-Airomatic
Stobag-Airomatic

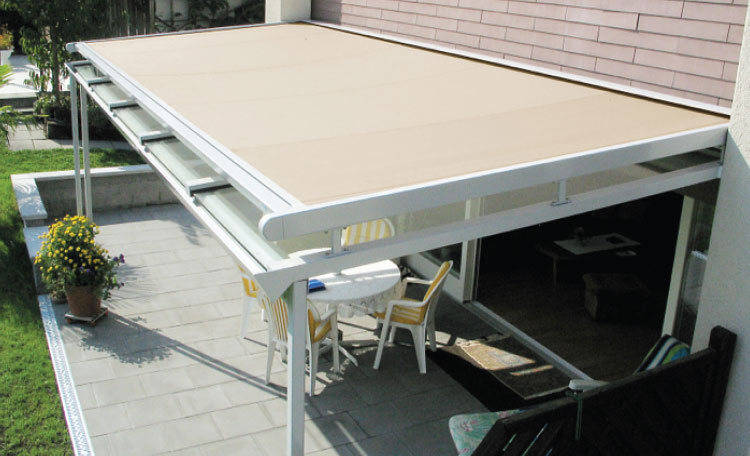

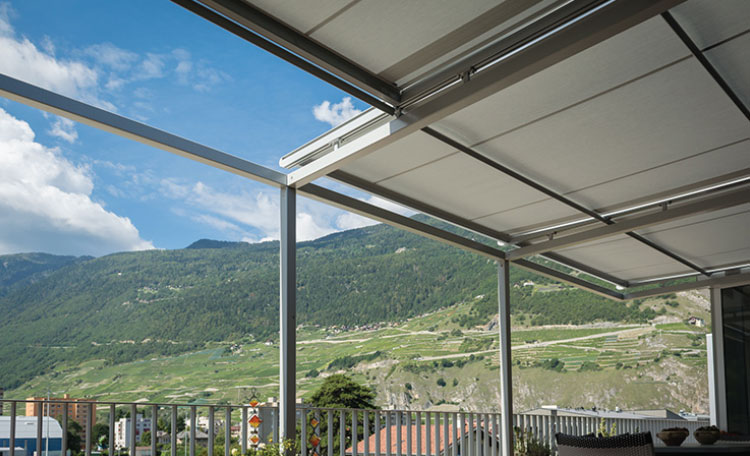

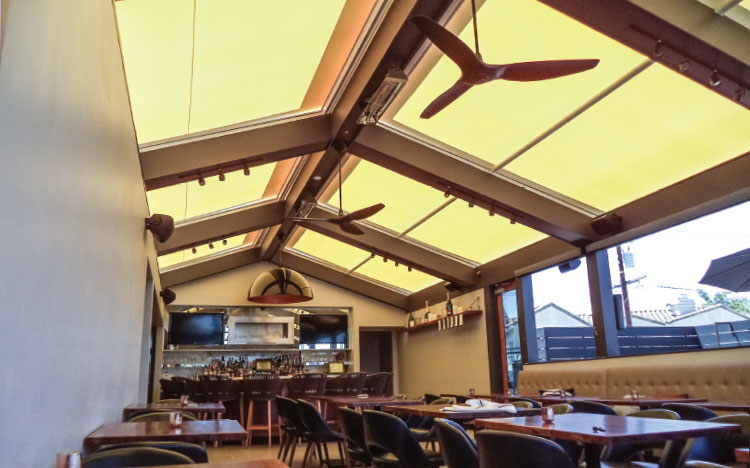

The Airomatic model is an excellent choice for motorized sun protection on existing interior or exterior areas such as conservatories, glass roofs, skylights, and terraces. The high quality aluminum profile system is a very compact construction and is especially suitable for small and medium size areas.

The cassette box is self -supported by guide rails mounted on track brackets to an existing substructure. The struts have integrated lateral gas piston/cable operation for constant and perfect tensioning of the cover. A choice of track brackets allow for flexible and easy installation even on a complicated structure.

The motorized vertical unit can be mounted and operated at any angle or orientation and larger projections include cross rollers for support of the fabric.

* Color Swatch is for Reference Only.
PRODUCT SPECIFICATIONS
Linear Width3'4" - 13'1" (PS4000), 3' - 18'1" (PS4500)
Projection3'4" - 13'1" (PS4000), 3' - 19'8" (PS4500)
Frame FinishPolyester Powder Coated
Frame Colors*White white (Custom Colors - Upcharge)
Mounting OptionsTrack Brackets to Sub-Structure
Projection TypeGuide Rails - Integrated Gas Cylinder/Cable
Roller Tube3.5" or 4" Steel
Cassette Size PS 4000Width 5-7/16" | Height: 4-13/16"
Cassette Size PS 4500Width 5-9/16" | Height: 5-11/16"
PitchSuggested - 20º
Fabric ProtectionFull Cassette
Mode of OperationSomfy Motor
Retractable ValanceNot Available
Fabric Options100% Solution Dyed Acrylics
* Color Swatch is for Reference Only.
