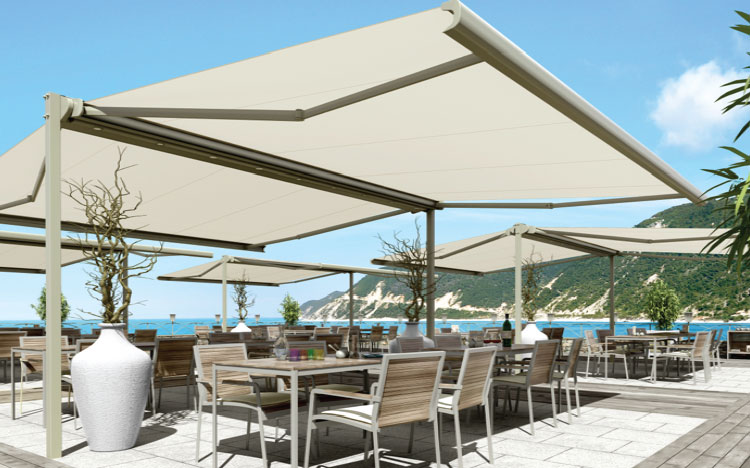

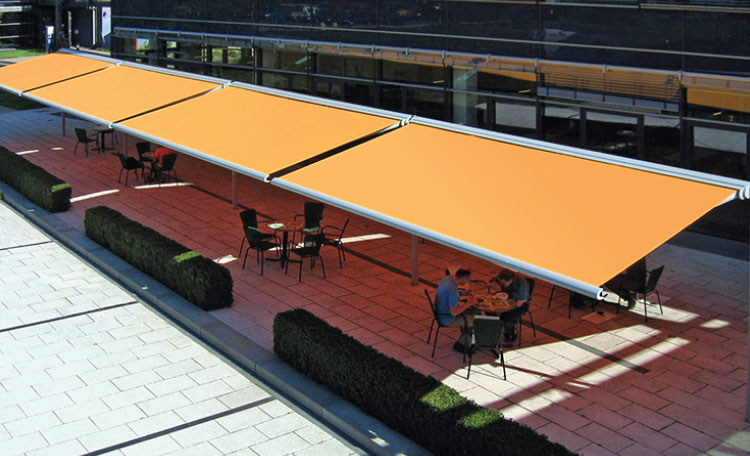

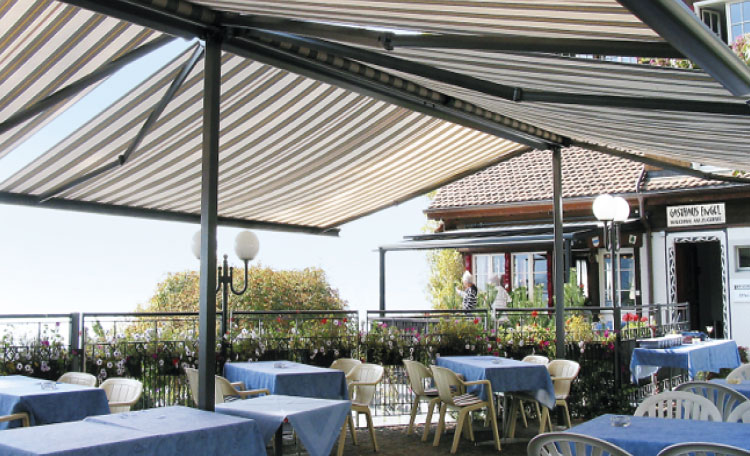

The Boxmobile consists of a solid steel post set on which two full cassette box awnings are mounted for shading large open spaces as a free-standing system up to 460 square feet.

The free-standing awning system is especially suitable for swimming pool areas, outdoor restaurant patios, event protection, and many other uses.

Each system can operate individually or in tandem and additional units can be linked together for larger spaces. The full cassette on each awning offers full fabric protection and system stability is guaranteed with floor sleeves or concrete sockets.

PRODUCT SPECIFICATIONS
Linear Width 9' - 20'
Projection 9'10", 13'1", 16'4", 19'8", 22'11"
Frame Finish Polyester Powder Coated
Frame Colors* White white (Custom Colors - Upcharge)
Mounting Options Surface Mount, Inground Mount
Roller Tube 78mm
Post Supports 2 - Solid Steel, Max. Height 8'6"
Pitch Adjustment 0º - 76º
Fabric Protection Full Cassette
Mode of Operation Manual Bevel Gear or Somfy Motor
Retractable Valance Not Available
Fabric Options 100% Solution Dyed Acrylics
Valance Options 9 Standard Choices or Dealer Custom Design
Warranty 10 Year Limited Hardware Warranty
* Color Swatch is for Reference Only.
