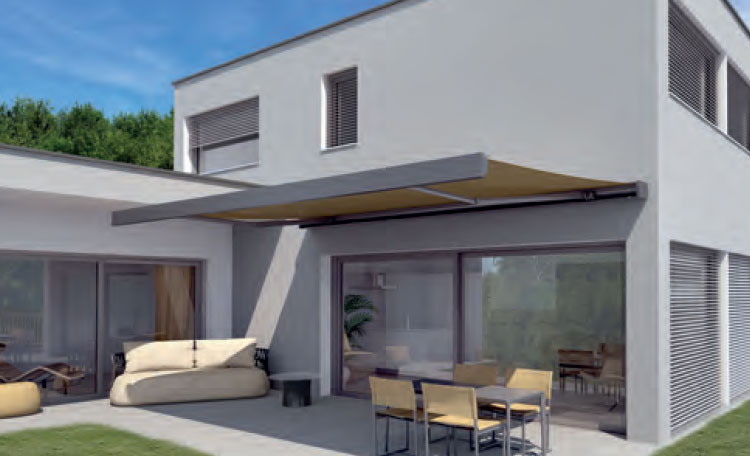

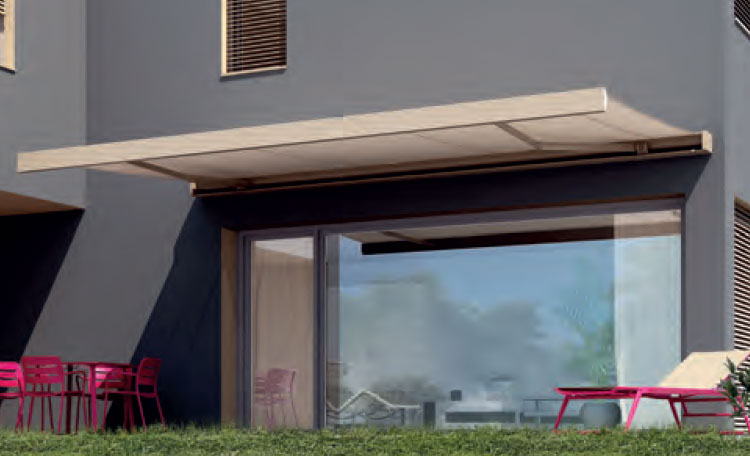

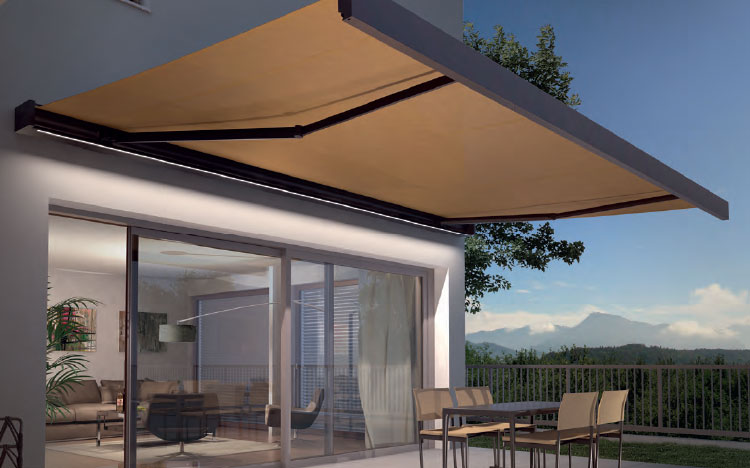

The Camabox awning is a full cassette awning with folding arms for small to midsize coverage areas. The smart clean square design complements the structure that it is installed on.
The extruded aluminum box and front bar provide excellent protection for the fabric and other components when closed greatly extending the useful life of the product. All of the aluminum components are protected with a polyester powder coating. The box profile is provided with a continuous hook for hanging the awning brackets for wall installation allowing for variable bracket positioning. Variable pitch adjustment via an adjusting nut on the tilt joint from 5 to 35 degrees.
The unit features a standard bevel gear drive with crank and can be upgraded at extra cost to a Somfy tubular motor and Electronic controls.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Linear Width | 8'2" - 18'1" |
| Projection | 4'11", 6'6", 8'2", 9'10" |
| Frame Finish | Polyester Powder Coated |
| Frame Colors* | White  (Custom Colors - Upcharge) |
| Mounting Options | Wall, Soffit | Arm Type | Folding Arm - S.S. Double Cable | Roller Tube | 78mm | Cassette Size | Width: 9-3/16" | Height: 6-11/16" |
| Pitch Adjustment | 0º - 35º |
| Fabric Protection | Full Cassette |
| Mode of Operation | Manual Bevel Gear or Somfy Motor |
| Retractable Valance | Not Available |
| Fabric Options | 100% Solution Dyed Acrylics |
