Stobag Ombramobile

Stobag Ombramobile
Stobag Ombramobile
Stobag Ombramobile

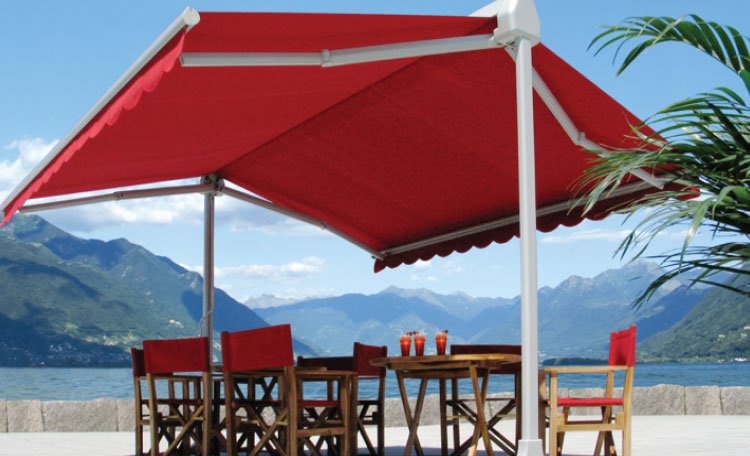

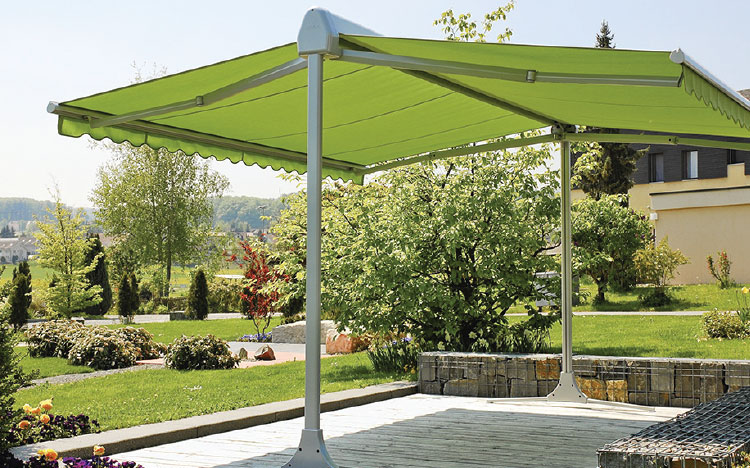

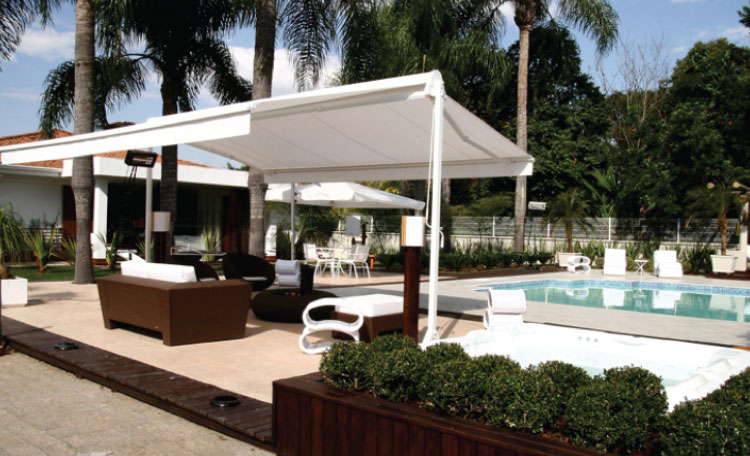

The Ombramobile is a freestanding double awning for shading large areas. As there are no middle posts under the awning, the space can be used more effectively.

The system is very versatile for assembly construction and dis-assembly for mobile usage on limited time events such as outdoor festivities, market stalls, special events, or private use. The product is significantly stronger than common pop-up type tents and other similar shading products.

The stable folding arms roll out both sides simultaneously. Leg options are available as a two-leg version with cross feet or with floor sleeves to set in concrete. The four-leg option is ideal for uneven ground areas on lawns or gravel and can also be permanently set into the ground.

Linear Width 10'10" - 18'
Projection 9'10", 11'5", 13'1", 14'9"
Frame Finish Polyester Powder Coated
Frame Colors* White white (Custom Colors - Upcharge)
Mounting Options Surface Mount, Inground Mount
Roller Tube 78mm
Post Supports 2 or 4 Legs, Max. Height 8'6"
Pitch Adjustment 10º - 20º
Fabric Protection Full Cassette
Mode of Operation Manual Bevel Gear or Somfy Motor
Retractable Valance Not Available
Fabric Options 100% Solution Dyed Acrylics
Valance Options 9 Standard Choices or Dealer Custom Design
Warranty 10 Year Limited Hardware Warranty
* Color Swatch is for Reference Only.
