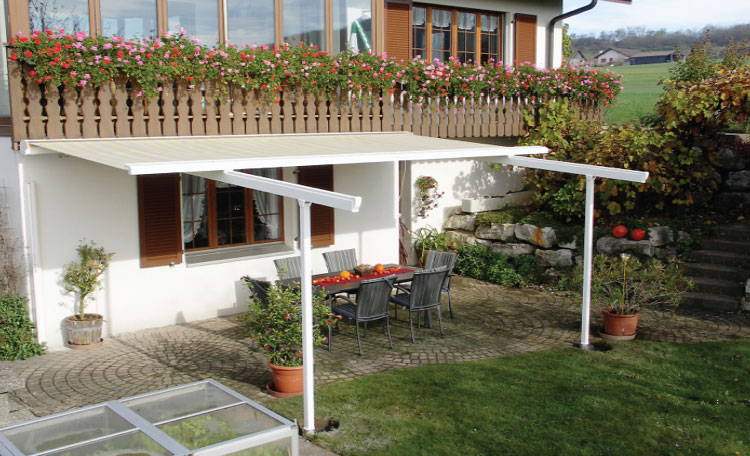

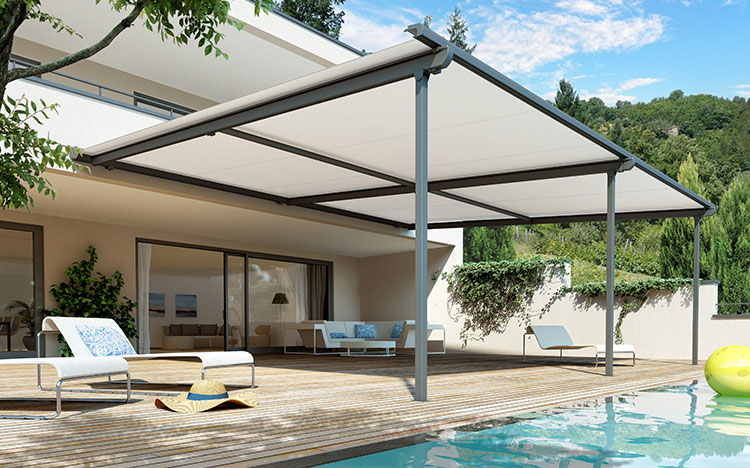

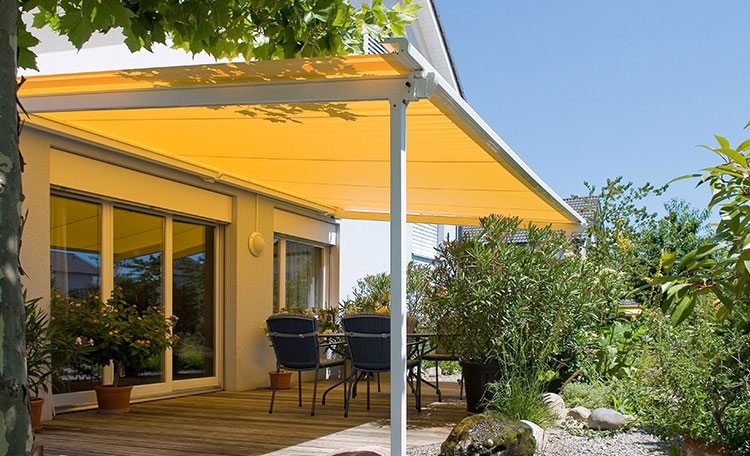

The Pergolino model is the ideal sun and weather protection for private homes and commercial applications. The wall-mounted pergola unit includes post profiles under the guide rails that provide the system with a high degree of stability.

These vertical posts accommodate applications over clear spaces that have no existing sub-structure to attach a standard guide rail application. The supports can be secured with a ground sleeve or attached to the surface with a mounting foot. The robust system includes a full cassette for additional fabric protection and can be assembled quickly and easily.

The guide rails have integrated gas cylinders combined with stainless steel cables to ensure constant tensioning of the fabric in any position.

PRODUCT SPECIFICATIONS
Linear Width 4'7" - 12'
Projection 6'6", 8'2", 9'10", 11'5"
Frame Finish Polyester Powder Coated
Frame Colors* White white (Custom Colors - Upcharge)
Mounting Options Wall, Soffit, Roof
Roller Tube 78mm
Torsion Bar Triangular
Pitch Adjustment 0º - 60º
Fabric Protection Optional Hood with Side Covers
Unit Operation Manual Bevel Gear or Somfy Motor
Retractable Valance Manual 5'0" - 8'0" Depending on Fabric/td>
Fabric Options 100% Solution Dyed Acrylics
Valance Options 9 Standard Choices or Dealer Custom Design
Warranty 10 Year Limited Hardware Warranty

*Minimum 20º Pitch Recommended on Exterior Installed Units to Avoid Rain Damage.

* Color Swatch is for Reference Only.
