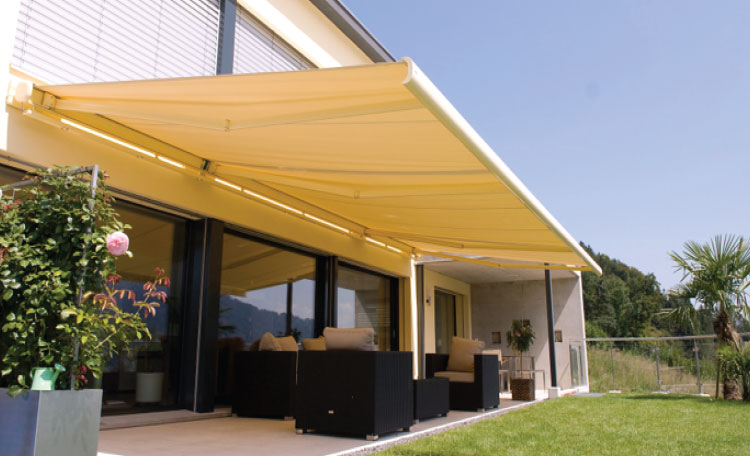

The Resobox BX8000 is an elegant box cassette designed for use on large area patios and decks. Constructed into a unique modular box configuration, the fabric and extra strength folding arms with forged fittings are effectively protected from weather exposure when retracted and provide a clean architectural compliment to any home or business.
With an extraordinary width capability up to 45’and projections up to 13’with a continuous one-piece fabric cover, areas of over 500 square feet can be shaded with the Resobox BX8000. An optional retractable valance with manual operation is available.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Linear Width | Standard: 7'4" - 45' |
| Projection | 4'11", 6'7", 8'2", 9'10", 11'6", 13'1" |
| Frame Finish | Polyester Powder Coated |
| Frame Colors* | White  (Custom Colors - Upcharge) |
| Mounting Options | Wall, Soffit, Roof | Arm Type | Folding Arm - S.S. Double Cable | Roller Tube | 78mm |
| Pitch Adjustment | 5º - 40º |
| Fabric Protection | Full Cassette |
| Cassette Size | Width: 9-3/8" | Height: 11-3/4" |
| Mode of Operation | Somfy Motor |
| Retractable Valance | Available |
| Fabric Options | 100% Solution Dyed Acrylics |
