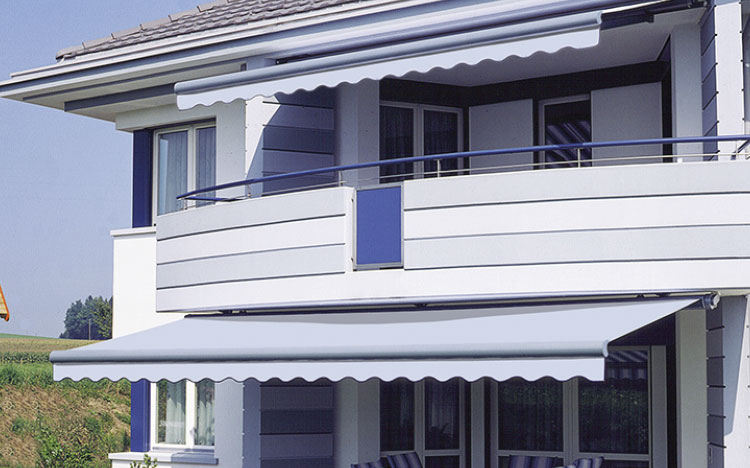

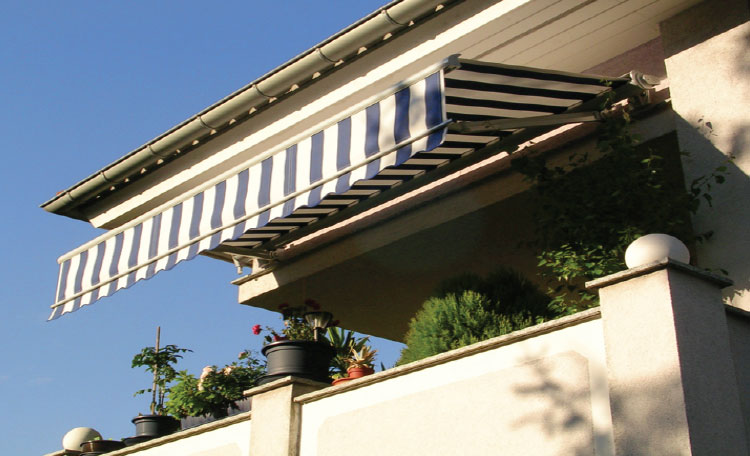

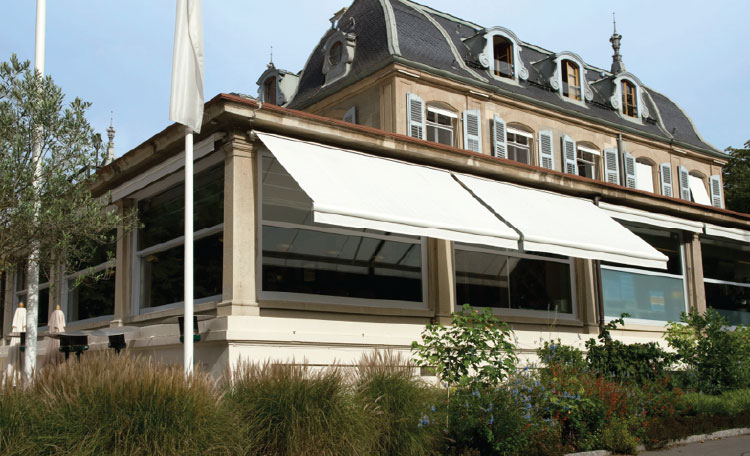

The semi cassette Select -Box is a compact folding arm awning with a hidden triangular mounting bar, solid aluminum folding arms with integrated tension springs, double stainless steel cables, and cable protection over the center joint.

The semi-cassette Select-Box encapsulates the fabric roller for added protection and lifespan of the cover fabric. The unit design also incorporates an end bracket with a downward sloping orientation and rounded front rail that provides a clean architectural finish when the unit is retracted.

Universal brackets enable wall, soffit , or roof mount installations even in restricted spaces and a continuous pitch adjustment using the adjusting screw on the arm bearing provides easy pitch settings.

The unit features a standard drive with an easy running bevel gear box and hand crank or opitonal Somfy Motors and Electronic Controls. An optional drop down retractable valances down to 8’ for additional low angle sun protection and privacy is available on projections of 11’5” or less.

PRODUCT SPECIFICATIONS
Linear Width Standard: 6'10" - 19'8"
Projection 4'11", 6'6", 8'2", 9'10", 11'5", 13'1"
Frame Finish Polyester Powder Coated
Frame Colors* White white (Custom Colors - Upcharge)
Mounting Options Wall, Soffit, Roof, Rafter
Roller Tube 78mm
Torsion Bar Triangular
Pitch Adjustment 5º - 60º
Fabric Protection Semi-Cassette
Mode of Operation Manual Bevel Gear or Somfy Motor
Retractable Valance Manual, 5' - 8' Depending on Fabric
Fabric Options 100% Solution Dyed Acrylics

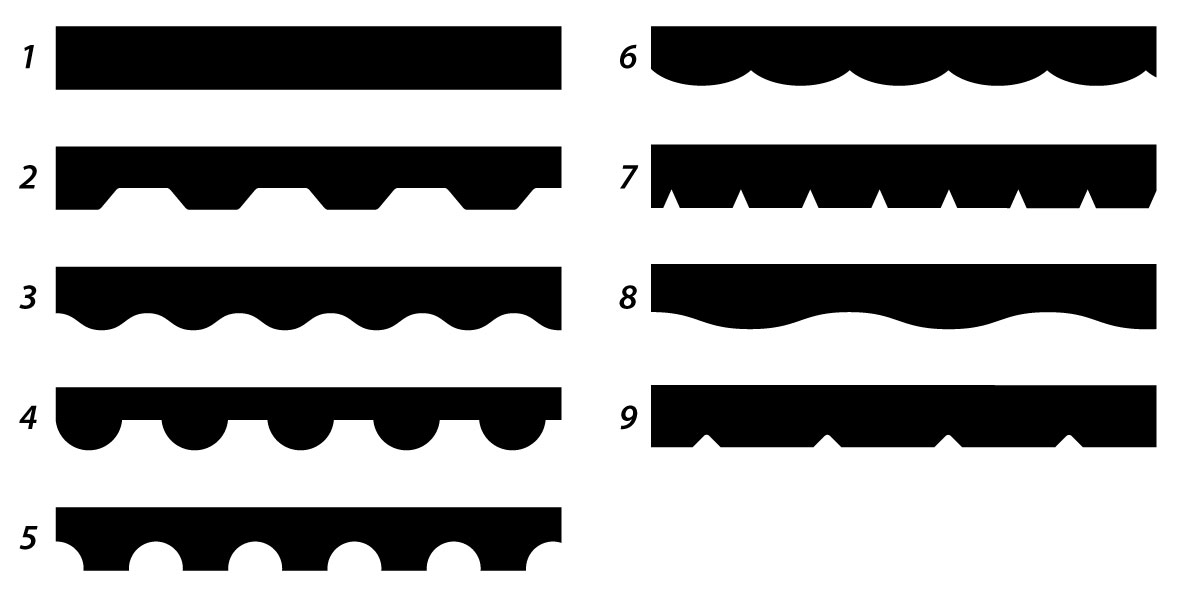

Valance Options 9 Standard Choices or Dealer Custom Design
Warranty 10 Year Limited Hardware Warranty
* Color Swatch is for Reference Only.
