Stobag Select/Ombramatic

Stobag Select/Stobag Ombramatic
Stobag Select/Stobag Ombramatic

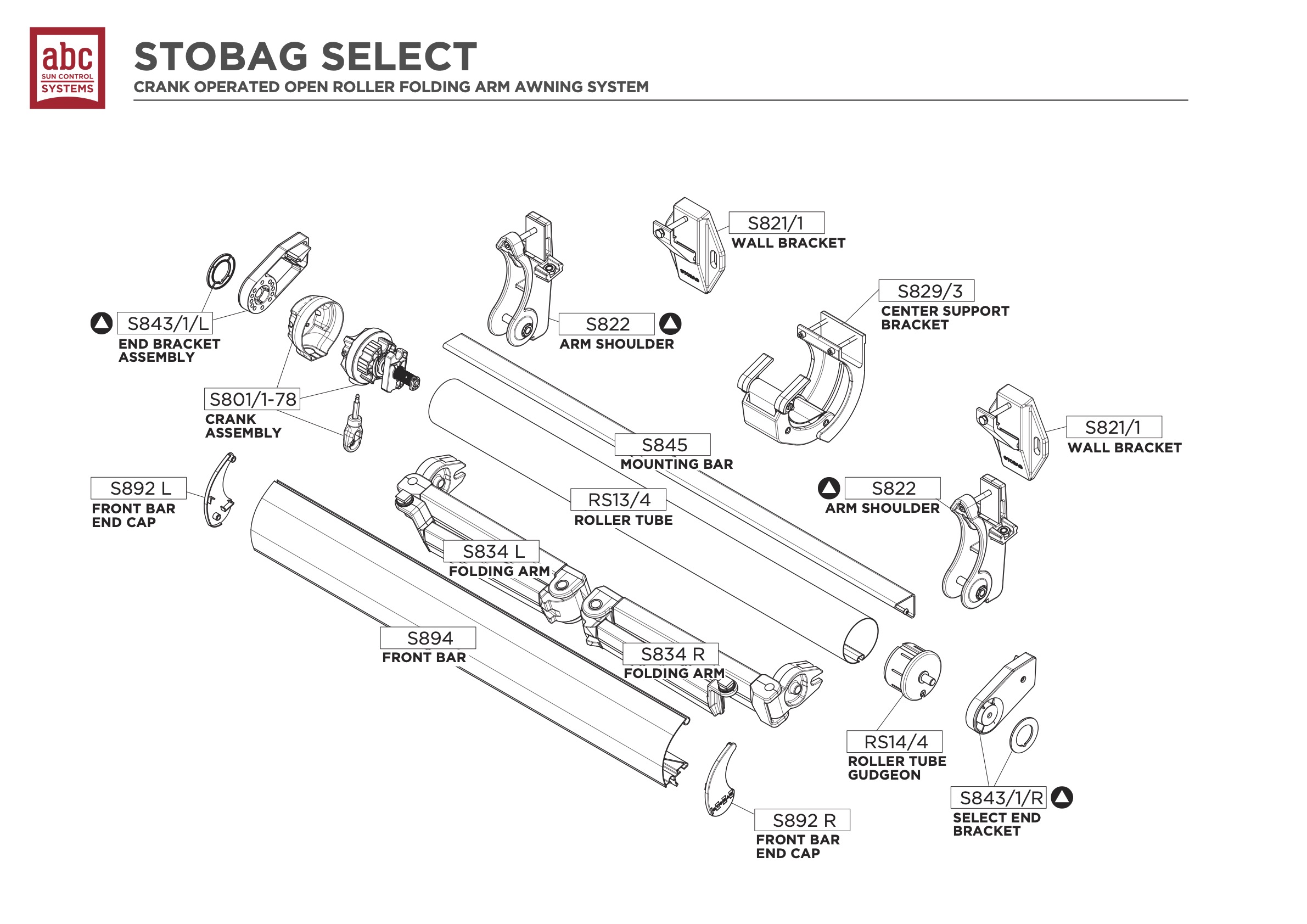

The Select/Ombramatic is a compact folding arm awning with a hidden triangular mounting bar, solid aluminum folding arms with integrated tension springs, double stainless steel cables, and cable protection over the center joint.

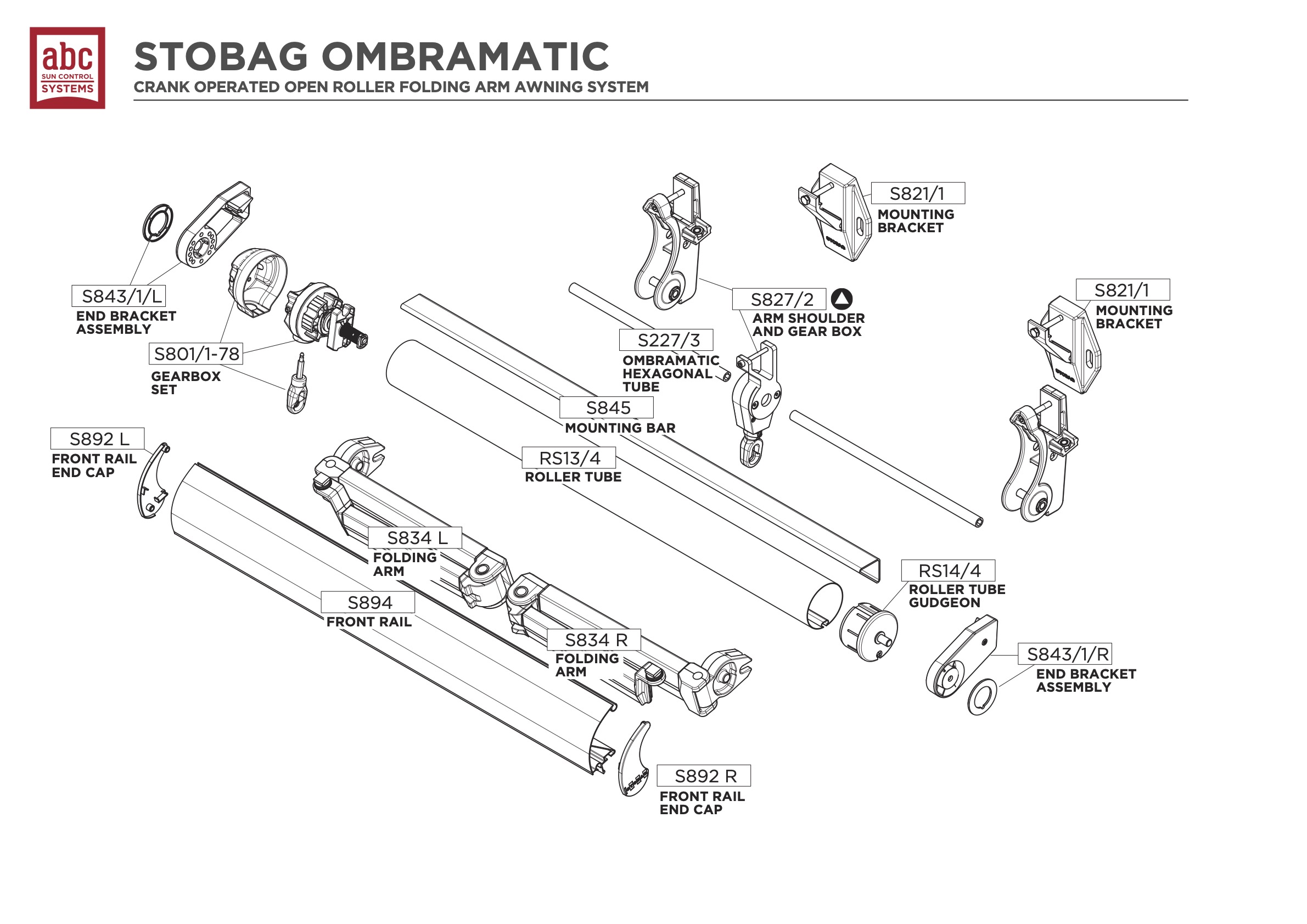

The unit design incorporates an end bracket with a horizontal orientation and rounded front rail that provides a clean and sleek architectural finish when the unit is retracted. The awning can be easily mounted to walls, soffits, roof rafters, or roof brackets. The units also feature easy continuous pitch adjustment using the adjusting screw on the arm bearing or with the optional Ombramatic gearbox for simultaneous pitch adjustment by an operating crank handle on the two arm size range.

This unit features a standard drive with easy-running bevel gear box and hand crank or Somfy Motors and Electronic Controls. An optional retractable valance can be installed with up to 8’ of fabric drop available on units with 11‘5” projection or less.

PRODUCT SPECIFICATIONS
Linear Width Standard: 4'10" - 40' Ombramatic: 7'4" - 19'
Projection 3'4", 4'11", 6'6", 8'2", 9'10", 11'5", 13'1"
Frame Finish Polyester Powder Coated
Frame Colors* White white Ivory ivory Sand sand Bronze bronze
Mounting Options Wall, Soffit, Roof, Rafter
Roller Tube 78mm
Torsion Bar Triangular
Pitch Adjustment 0º - 60º
Fabric Protection Optional Hood with Side Covers
Unit Operation Manual Geiger Bevel Gear or Somfy Motor
Retractable Valance Manual 5'0" - 8'0" Depending on Fabric
Fabric Options 100% Solution Dyed Acrylics
Valance Options 9 Standard Choices or Dealer Custom Design
Warranty 10 Year Limited Hardware Warranty

*Ombramatic Projections Limited to 6'6" - 11'5".

*Color Swatch is for Reference Only.
