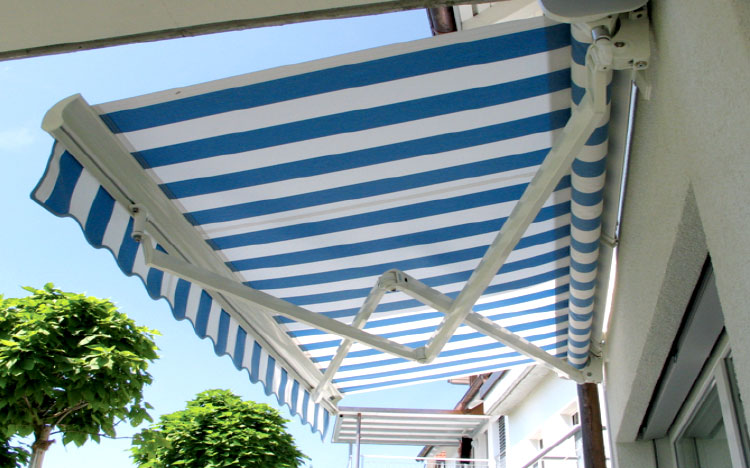

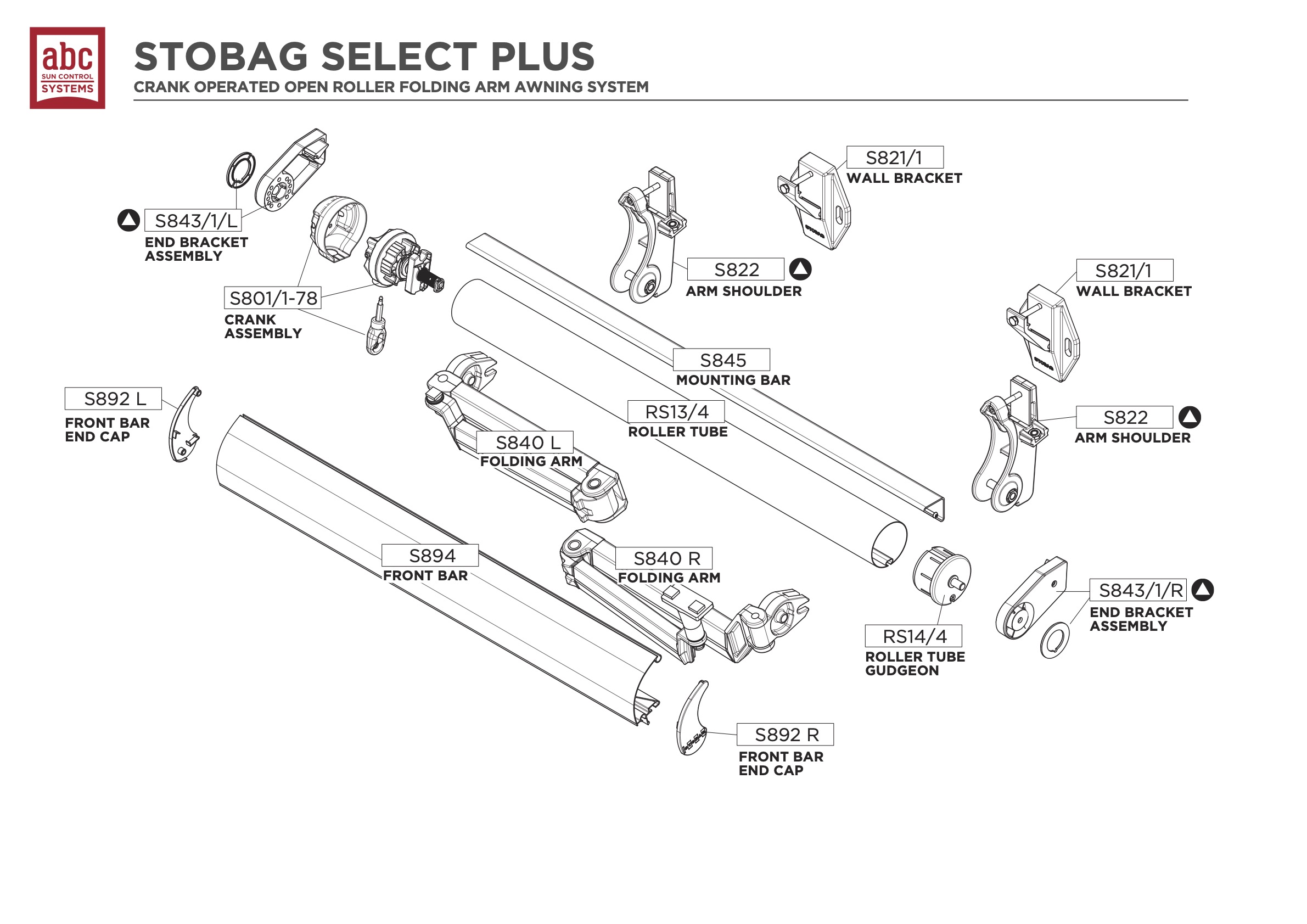

The Stobag Select Plus is a compact awning design with crossover folding arms enabling large projection capability for narrow width applications. The framework construction includes a unique modified upper arm profile and shoulder for direct attachment to the arm to the triangular torsion bar. The system also includes solid aluminum folding arms with integrated tension springs, double stainless steel cables, and cable protection over the center joint.

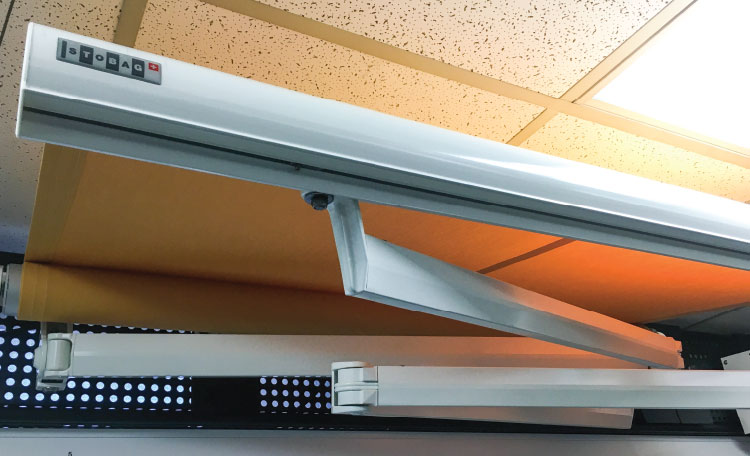

The unit design incorporates an end bracket with a horizontal orientation and rounded front rail that provides a clean and sleek architectural finish when the unit is retracted. The awning can be easily mounted to walls, soffits, roof rafters, or roof brackets. The unit also features easy continuous pitch adjustment with the adjusting screw on the arm bearing or through the optional Ombramatic gearbox for simultaneous pitch adjustment by an operating crank handle on the two arm size range.

PRODUCT SPECIFICATIONS
Linear Width 4'7" - 12'
Projection 6'6", 8'2", 9'10", 11'5"
Frame Finish Polyester Powder Coated
Frame Colors* White white (Custom Colors - Upcharge)
Mounting Options Wall, Soffit, Roof
Roller Tube 78mm
Torsion Bar Triangular
Pitch Adjustment 0º - 60º
Fabric Protection Optional Hood with Side Covers
Unit Operation Manual Bevel Gear or Somfy Motor
Retractable Valance Manual 5'0" - 8'0" Depending on Fabric
Fabric Options 100% Solution Dyed Acrylics

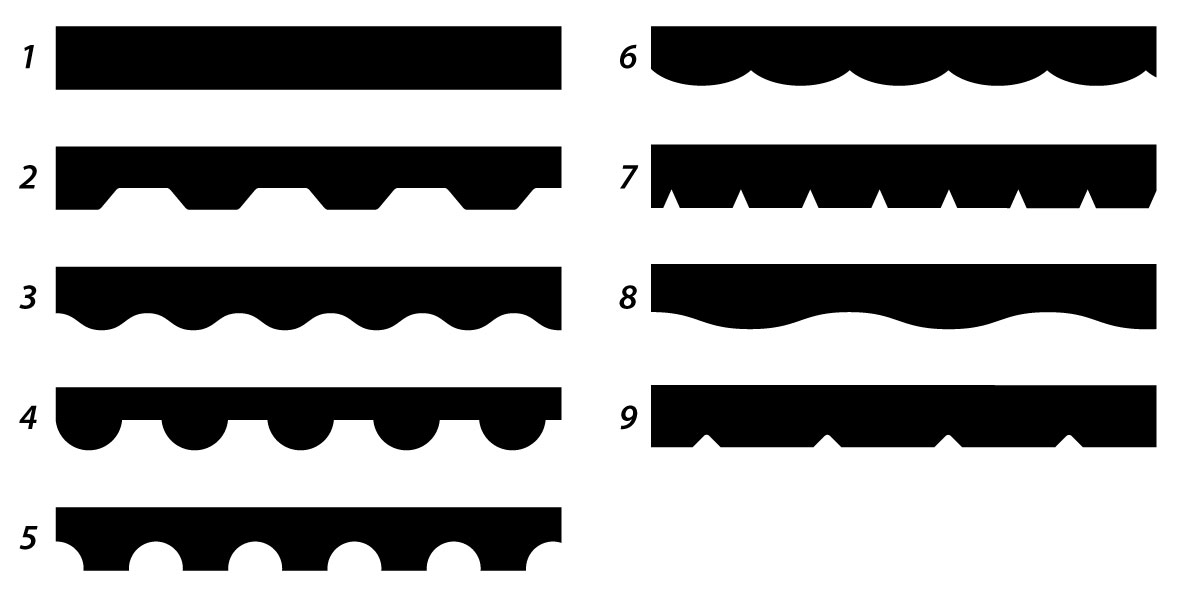

Valance Options 9 Standard Choices or Dealer Custom Design
Warranty 10 Year Limited Hardware Warranty
* Color Swatch is for Reference Only.
