Stobag Siro

Stobag Siro
Stobag Siro
Stobag Siro

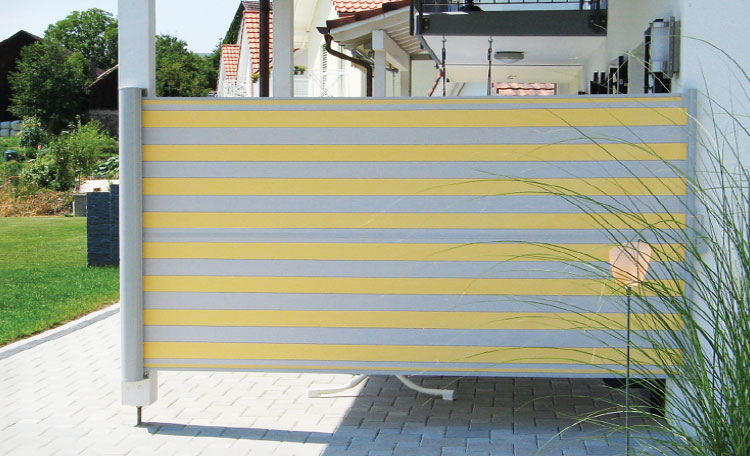

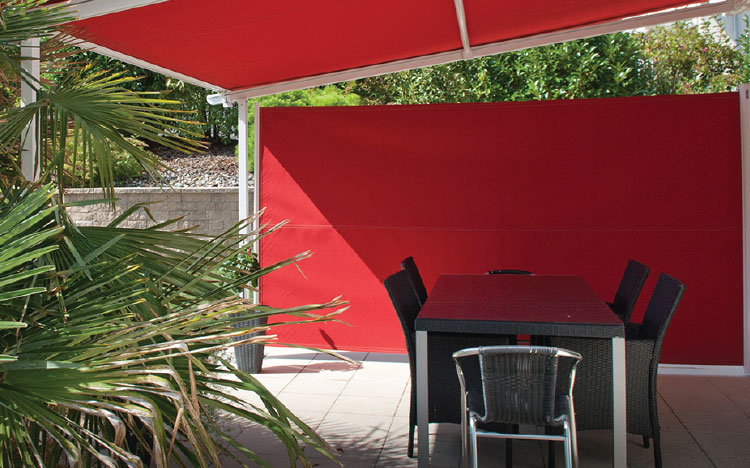

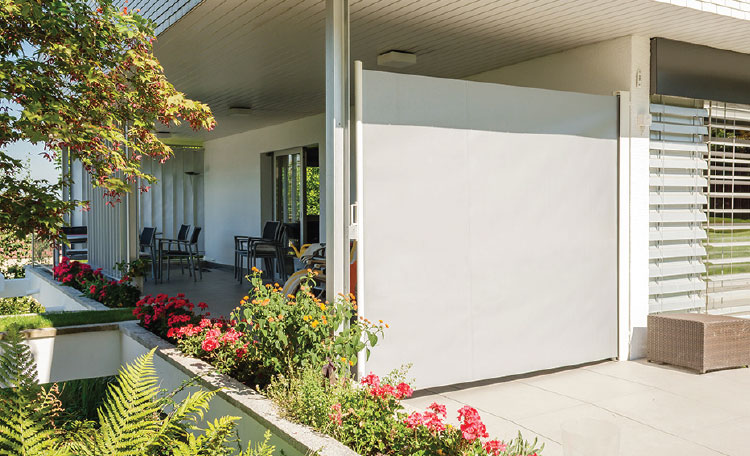

The Siro side shade is a multi-functional side shade for privacy, wind control, and low angle sun protection. The lateral shading device is also a great addition to overhead sun protection systems.

An integral tension spring component maintains optimum fabric tensioning and the cassette housing provides complete fabric protection when the unit is retracted.

The adjustable 90 degree lateral mounting flanges permit vertical and horizontal installation. Vertical installations require post support for the hand operated variable pullout with adjustable handle positioning.

PRODUCT SPECIFICATIONS
Linear Width 3'3" - 12'
Projection 3'11" - 6'6"
Frame Finish Polyester Powder Coated
Frame Colors* White white (Custom Colors-Upcharge)
Mounting Options 90º Lateral Mounting Flange
Projection Type Lateral Spring Tension
Roller Tube 60mm
Orientation Vertical or Horizontal
Fabric Protection Full Cassette
Mode of Operation Manual
Fabric Options 100% Solution Dyed Acrylics
Warranty 10 Year Limited Hardware Warranty
* Color Swatch is for Reference Only.
