Stobag Stoboscope

Stobag Select-Stoboscope
Stobag Select-Stoboscope
Stobag Select-Stoboscope

The Select- Stoboscope is a motorized compact open roller awning application with patented telescopic arm technology (gas pressure cylinder) for high constant tensioning of the fabric at any arm position.

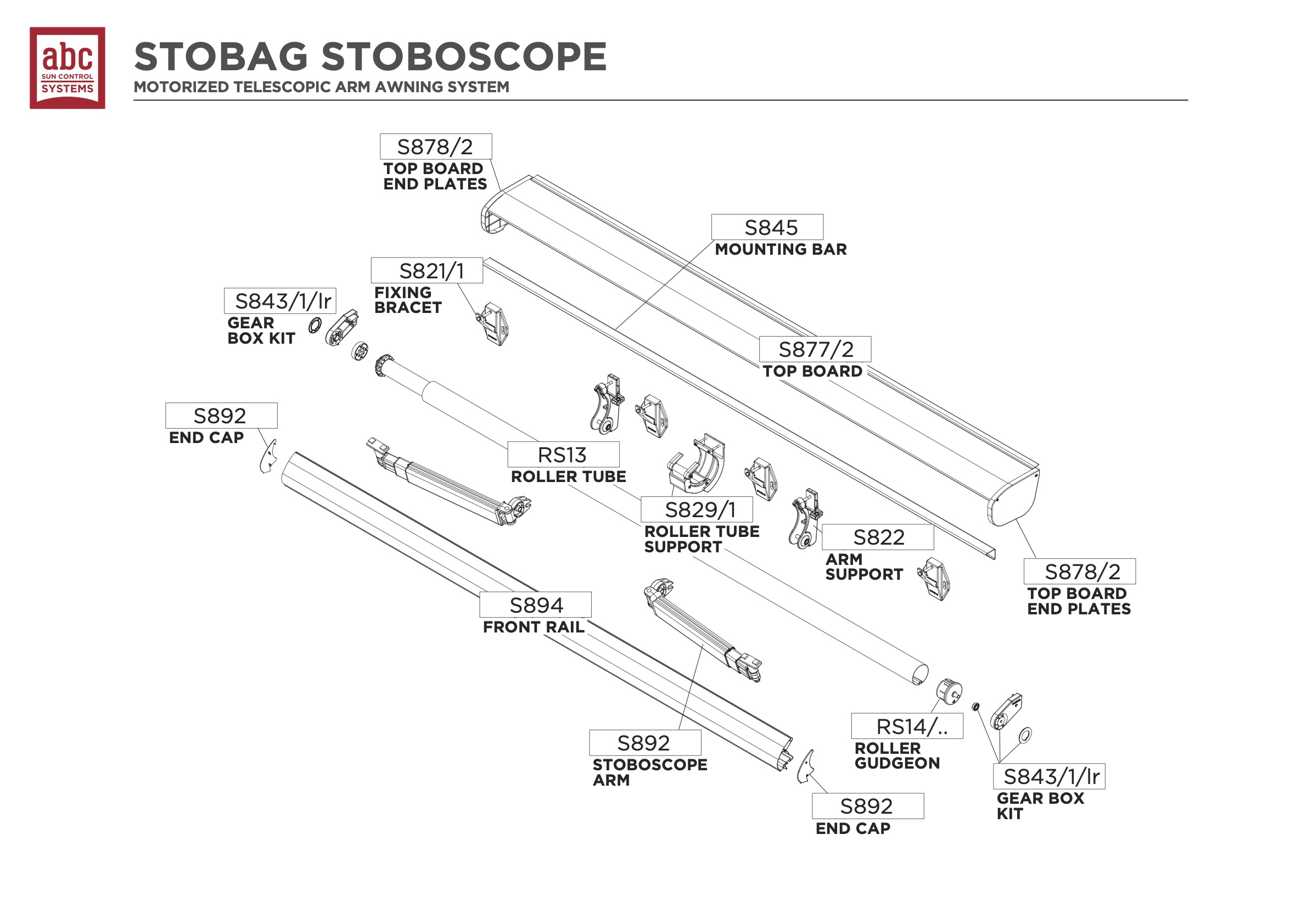

The framework construction includes a hidden triangular torsion bar and optional hood and side covers. The unit design also incorporates an end bracket with a horizontal orientation and rounded front rail that provides a clean and sleek architectural finish when the unit is retracted. The awning can be easily mounted to walls, soffits, roof rafters, or roof brackets.

PRODUCT SPECIFICATIONS
Linear Width 7'1" - 39'
Projection 6'6", 8'2", 9'10", 11'5"
Frame Finish Polyester Powder Coated
Frame Colors* White white (Custom Colors-Upcharge)
Mounting Options Wall, Soffit, Roof
Arm Type Telescoping Arm
Roller Tube 78mm
Pitch Adjustment 0º - 60º
Fabric Protection Optional Hood with Side Covers
Mode of Operation Somfy Motor
Retractable Valance Not Available
Fabric Options 100% Solution Dyed Acrylics
Valance Options 9 Standard Choices or Dealer Custom Design
Warranty 10 Year Limited Hardware Warranty
* Color Swatch is for Reference Only.
