Stobag Ventosol

Stobag Ventosol
Stobag Ventosol
Stobag Ventosol

The Stobag Ventosol is the top of the line solution to live comfortably with the sun. The system is configured as a motorized interior or exterior sun control solution with gas piston tensioned zipper track fabric guidance.

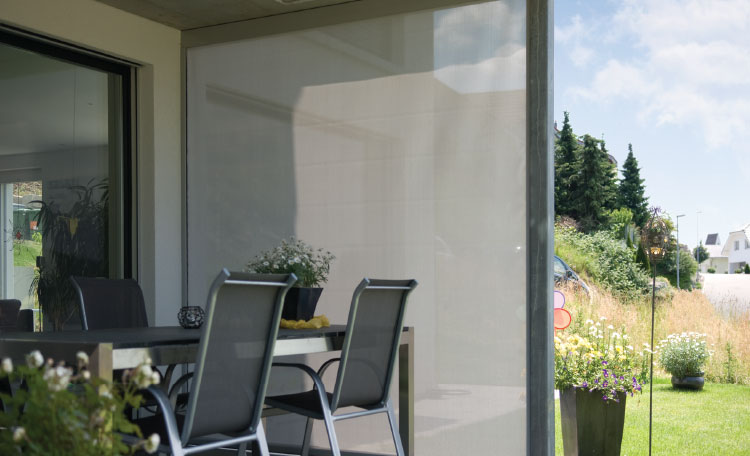

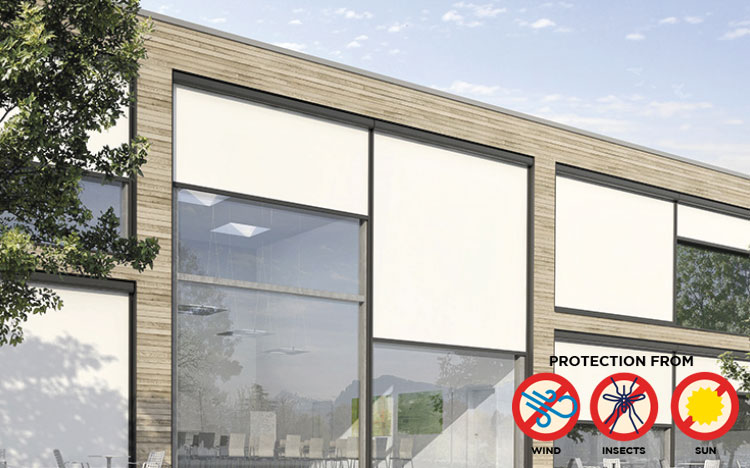

On exterior applications, the system can provide bottom up or top down capability and has been wind tunnel tested up to 62 mile/hr. Zippertrack fabric guidance keeps the bugs out, minimizes wind flow, and closes light gaps.

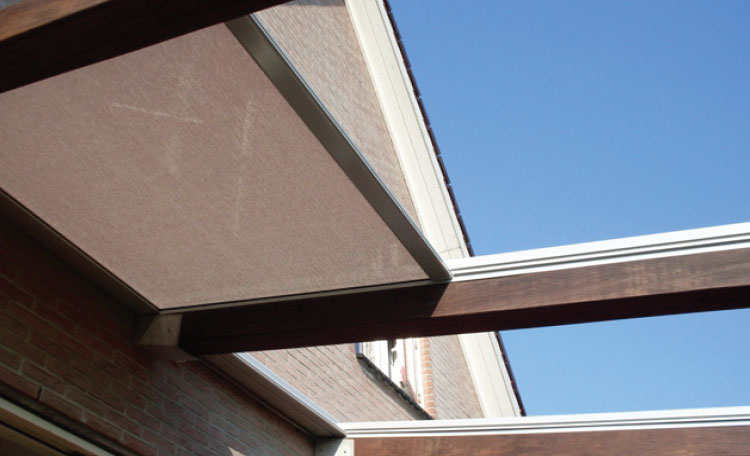

On interior applications, the slim line features of the cassette housing and tracks are ideal for skylights and glass openings that demand beautiful and ideal architectural design.

The variable openness choices on screen fabrics allow you to maintain the view that you desire while blocking solar heat gain. The system creates a glare free environment, maintains privacy, and protects furniture, drapes, floor coverings, and most importantly family members from harsh sunlight exposure. The environmentally friendly system produces significant energy savings and provides a relaxed and enjoyable living area.

Linear Width 3' - 14'
Projection 3' - 13'
Frame Finish Polyester Powder Coated
Frame Colors* White white (Custom Colors-Upcharge)
Mounting Options Wall, Soffit
Roller Tube 85mm
Fabric Guidance Side Tracks with Zipper Retension
Fabric Protection 4.75" (120.5mm) X 5" (126mm) Rounded Cassette
Mode of Operation Somfy RTS Motor
Fabric Options Variable Openness Screen, Opaque, Blackout
Warranty 10 Year Limited Hardware Warranty
* Color Swatch is for Reference Only.
