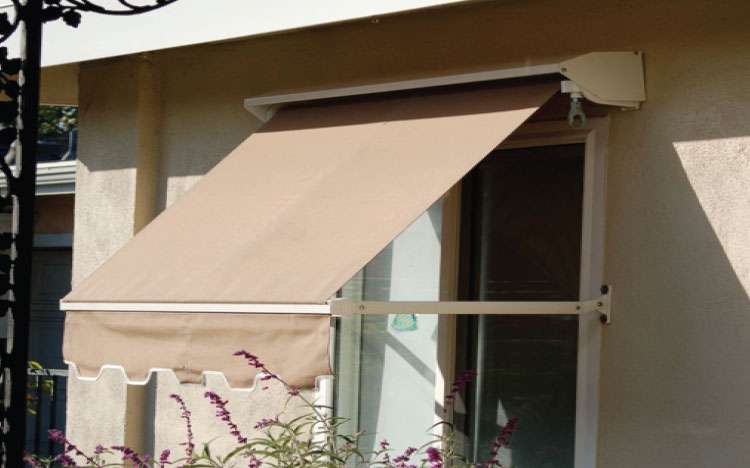

The Robusta large drop arm window awning is a rugged and versatile retractable window awning that can be operated by manual hand crank (exterior) or motorized control. The spring-tensioned arms can be lowered from a retracted position to within an amazing 15 degrees from vertical for low angle sun protection.
The robust components allow for wide width applications that can span up to 25’ or more. A heavy guage stylish aluminum hood is also available for protection on the fabric and mechanisms.

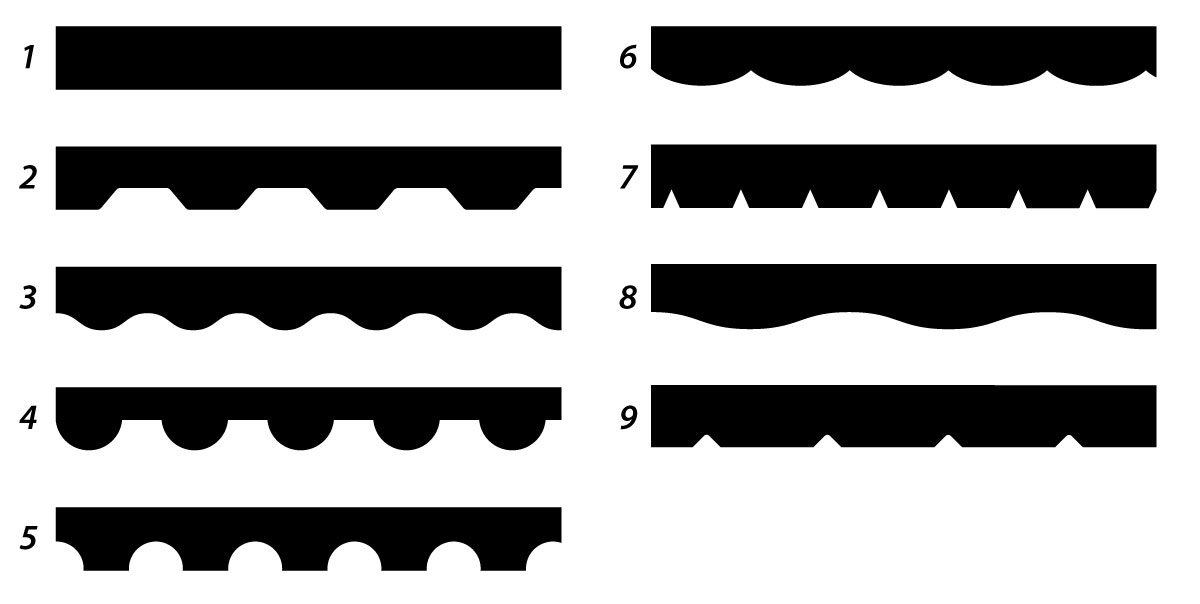

abc Valance Styles
| PRODUCT SPECIFICATIONS | |
|---|---|
| Linear Width | 5' - 25' |
| Projection | 2'6" - 5' |
| Frame Finish | Polyester Powder Coated |
| Frame Colors* | White  Ivory  Sand  Bronze  |
| Mounting Options | Wall, Soffit | Roller Tube | 70mm, 78mm | Projection Arms | Spring Loaded |
| Pitch Adjustment | 0º - 160º |
| Fabric Protection | Optional Hood |
| Mode of Operation | Manual Bevel Gear or Somfy Motor | Fabric Options | Sunscreen and Awning Fabrics |
