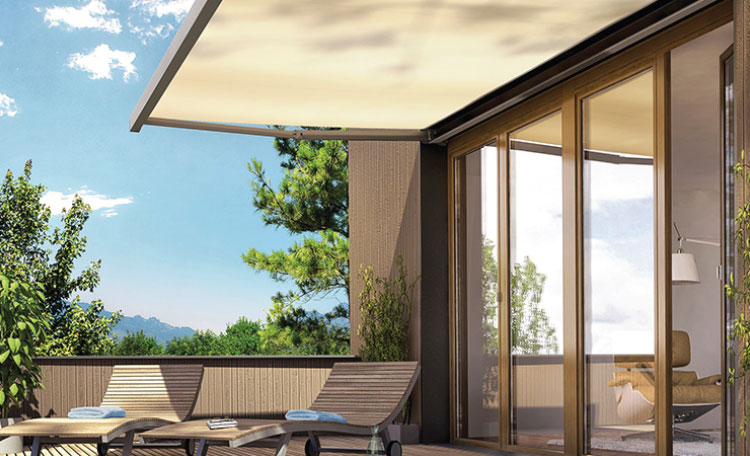

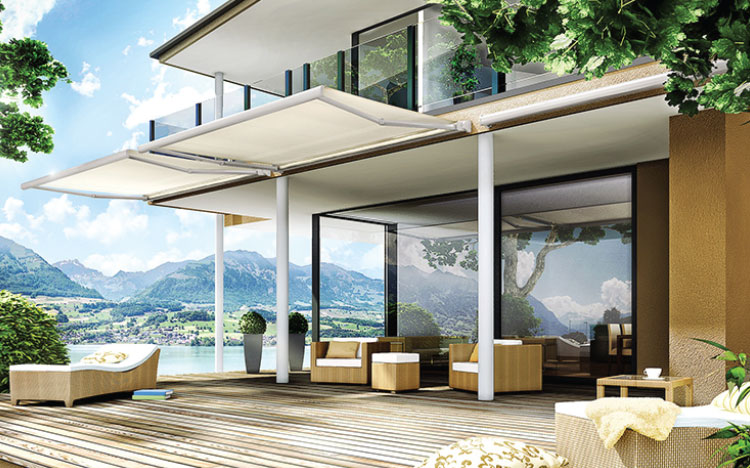

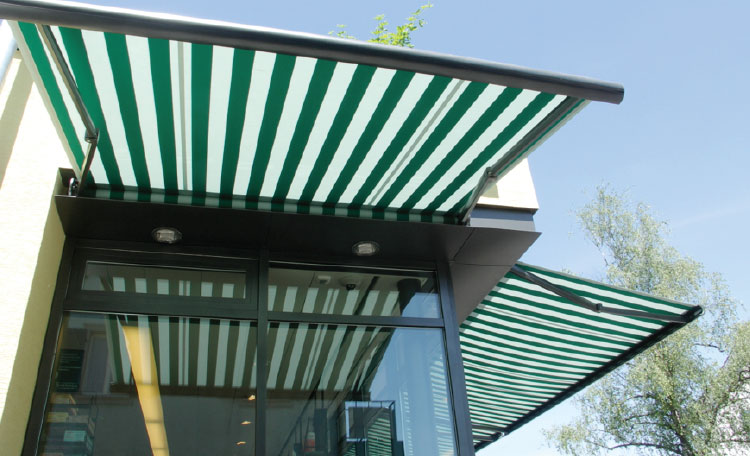

The full cassette Casabox folding arm awning offers a slim-line design that is the ideal architectural compliment to any home or business. The compact dimensions of the system with a completely sealed housing makes it especially suitable for wall or soffit mounting on balconies and small patio areas.
Mounting brackets on each end of the system make the installation quick and easy. A lateral rotating mechanism allows for very steep pitch capability. The elegant cassette with brush sealing on the top and bottom protects the awning against wind and weather when retracted thus guaranteeing a long life to the overall system.
The unit features a standard drive with an easy running bevel gear box and hand crank or opitonal Somfy Motors and Electronic Controls.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Linear Width | 4' - 16'6" |
| Projection | 3'4", 5'3", 6'6", 8'2", 9'10" |
| Frame Finish | Polyester Powder Coated | Frame Colors* | White  Bronze  (Custom Colors - Upcharge) |
| Mounting Options | Wall, Soffit, Roof | Arm Type | Folding Arm - S.S. Double Cable | Roller Tube | 70mm |
| Pitch Adjustment | 0º - 76º |
| Fabric Protection | Full Cassette | Cassette Size | Wall Installation | Soffit Installation |
| Mode of Operation | Manual Bevel Gear or Somfy Motor |
| Retractable Valance | Not Available |
| Fabric Options | 100% Solution Dyed Acrylics |
