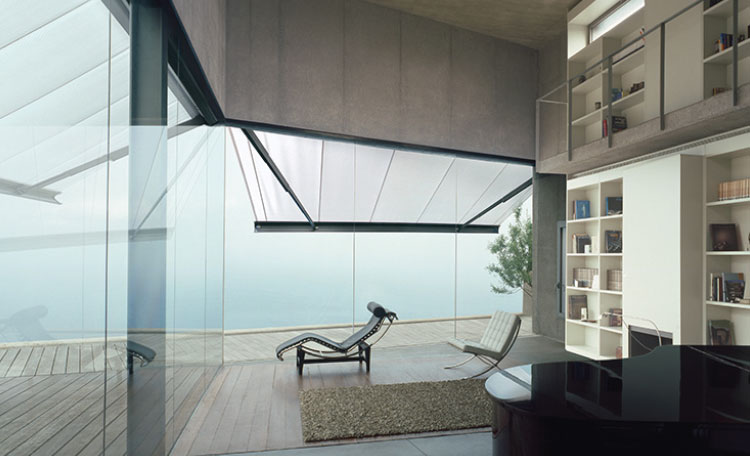

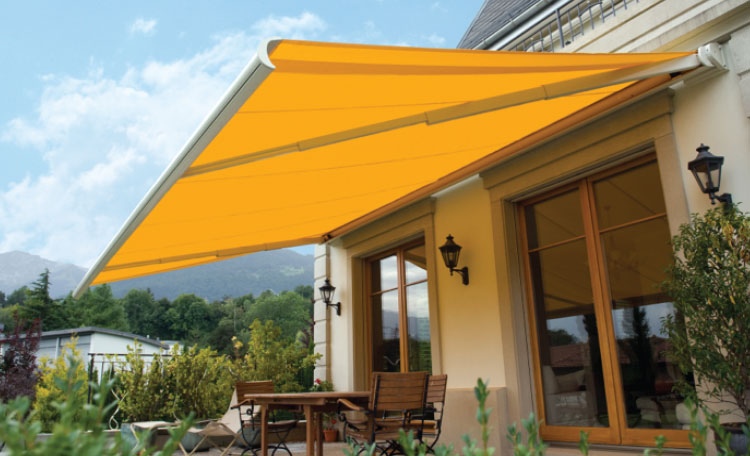

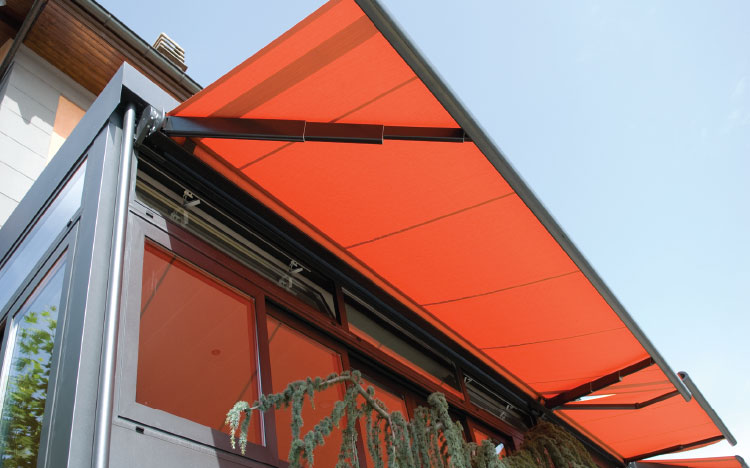

The full cassette Mesabox telescopic arm awning offers a compact linear design that is the ideal architectural compliment to any home or business. The availability on extended dimensions up to 23’ in width and telescopic arms projecting out to 13’ with a completely sealed housing make it especially suitable for wall or soffit mounting on larger balconies and patio areas.
Mounting brackets on each end of the system make the installation quick and easy. A lateral rotating mechanism allows for very steep pitch capability.
The elegant cassette with brush sealing on the top and bottom protects the awning against wind and weather when retracted thus guaranteeing a long life to the overall system.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Linear Width | 11'6" -23' |
| Projection | 8'2", 9'10", 11'5", 13'1" |
| Frame Finish | Polyester Powder Coated |
| Frame Colors* | White  (Custom Colors - Upcharge) |
| Mounting Options | Wall, Soffit, Roof | Arm Type | Telescopic Arm | Roller Tube | 78mm |
| Pitch Adjustment | 0º - 70º |
| Fabric Protection | Full Cassette | Cassett Size Wall Installation | Width: 12" | Height 9" |
| Cassett Size Soffit Installation | Width: 12" | Height 8-5/8" |
| Mode of Operation | Somfy Motor |
| Retractable Valance | Not Available |
| Fabric Options | 100% Solution Dyed Acrylics |
