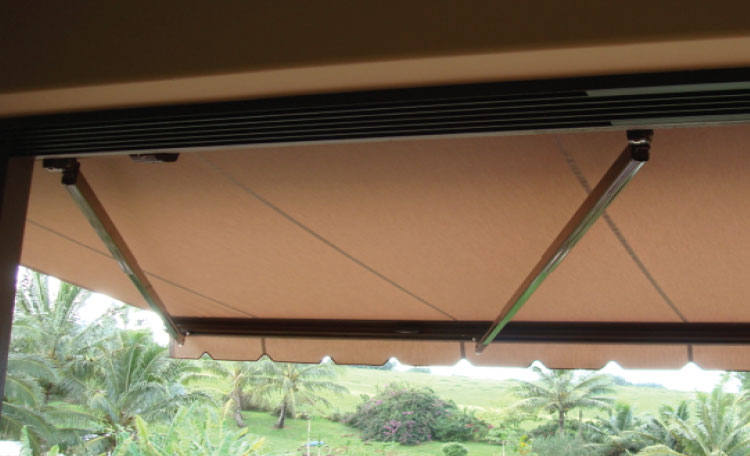

The Select- Stoboscope is a motorized compact open roller awning application with patented telescopic arm technology (gas pressure cylinder) for high constant tensioning of the fabric at any arm position.

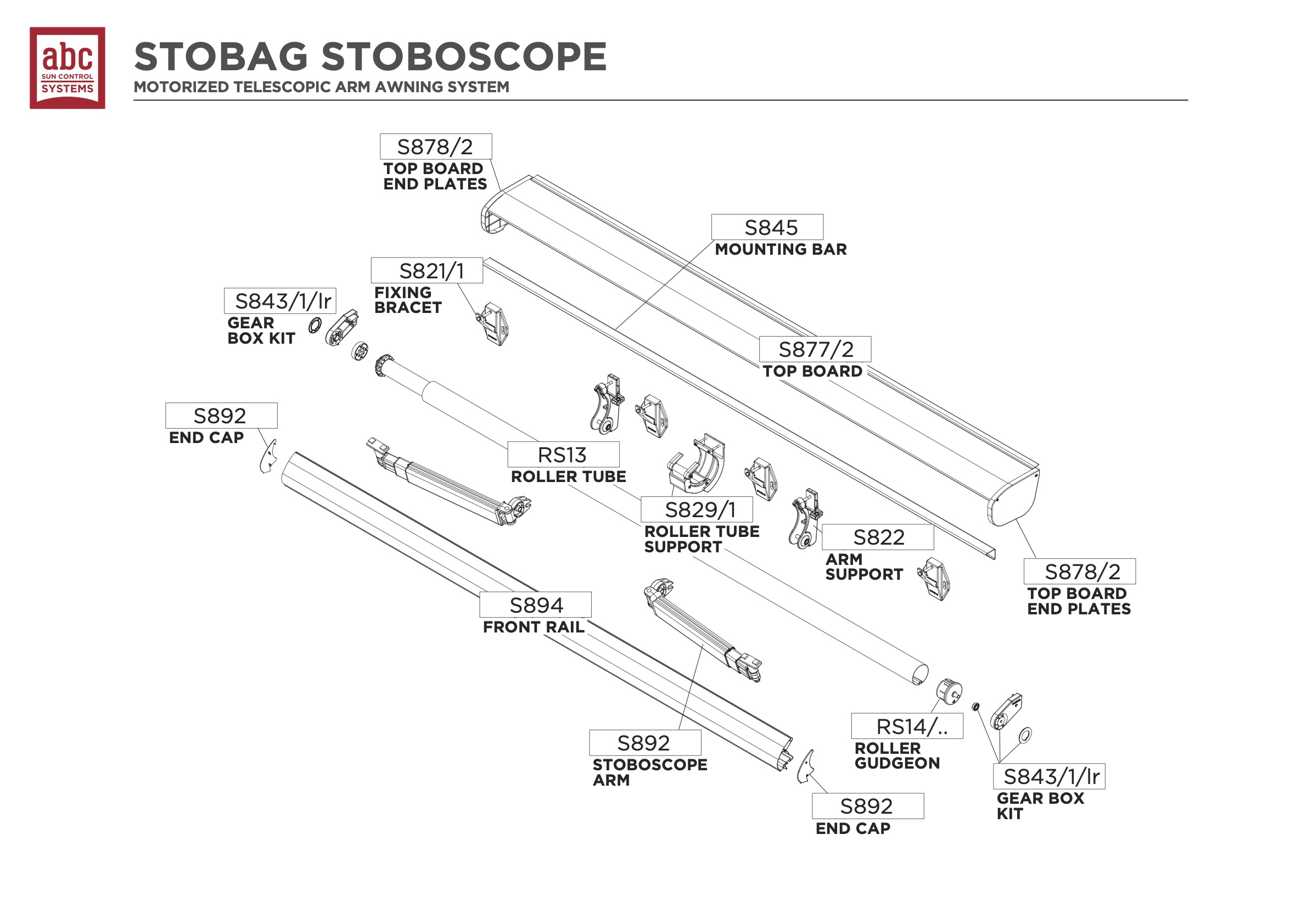

The framework construction includes a hidden triangular torsion bar and optional hood and side covers. The unit design also incorporates an end bracket with a horizontal orientation and rounded front rail that provides a clean and sleek architectural finish when the unit is retracted. The awning can be easily mounted to walls, soffits, roof rafters, or roof brackets.
abc Valance Styles
| PRODUCT SPECIFICATIONS | |
|---|---|
| Linear Width | 7'1" - 39' |
| Projection | 6'6", 8'2", 9'10", 11'5" |
| Frame Finish | Polyester Powder Coated |
| Frame Colors* | White  (Custom Colors-Upcharge) |
| Mounting Options | Wall, Soffit, Roof | Arm Type | Telescoping Arm | Roller Tube | 78mm |
| Pitch Adjustment | 0º - 60º |
| Fabric Protection | Optional Hood with Side Covers |
| Mode of Operation | Somfy Motor |
| Retractable Valance | Not Available |
| Fabric Options | 100% Solution Dyed Acrylics |
| Valance Options | 9 Standard Choices or Dealer Custom Design |
