Stobag Targa

Stobag-Targa
Stobag-Targa
Stobag-Targa

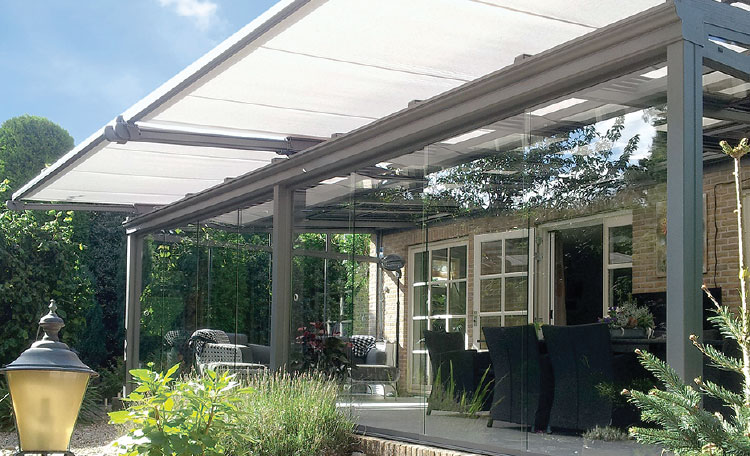

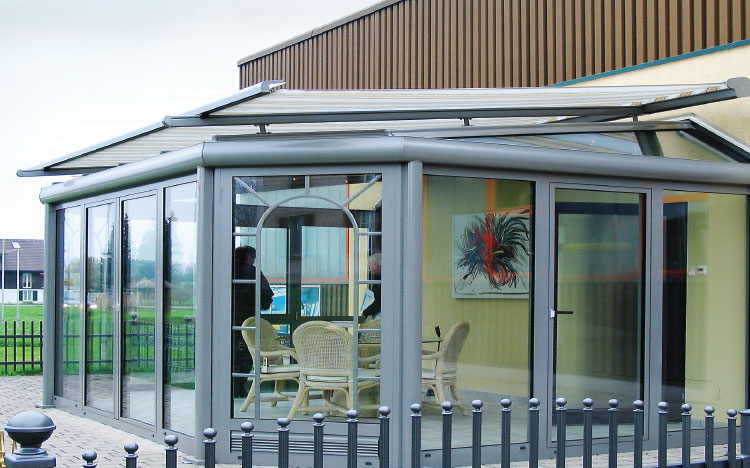

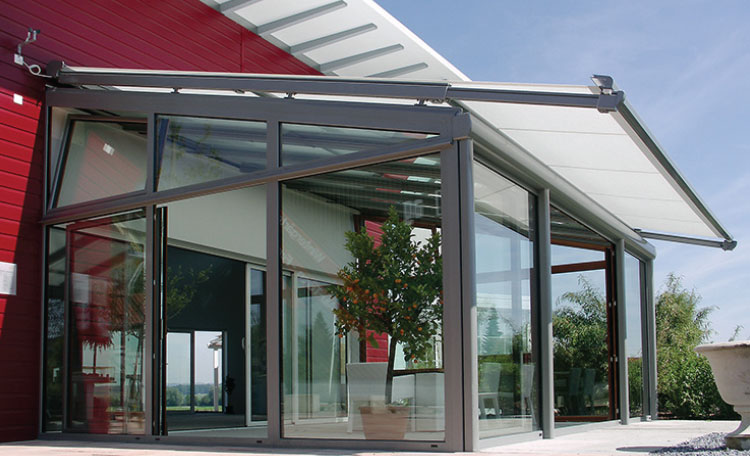

The Targa model is an elegant solution for shading large terrace and exterior trellis structures. The high quality aluminum profile system has adjustable positioning of the guide rails to accommodate the structure below. Additional rail (s) can be added for larger applications and thus even shade special shaped or inclined conservatories.

The fabric protecting cassette box is self -supported by the guide rails mounted on track brackets to the existing structure. The struts have integrated lateral gas piston/cable operation for constant and perfect tensioning of the cover. A choice of track brackets allow for flexible and easy installation even on a complicated structure.

PRODUCT SPECIFICATIONS
Linear Width3'4" - 19'8" (2 Guide Rails), 23' (3 Guide Rails)
Projection6'8" - 19'8" (2 Guide Rails), 23' (3 Guide Rails)
Frame FinishPolyester Powder Coated
Frame Colors*White white (Custom Colors-Upcharge)
Mounting OptionsTrack Brackets to Sub-Structure
Projection TypeGuide Rails - Integrated Gas Cylinder/Cable
Roller Tube3.5" or 4" Steel
PitchSuggested - 20º
Fabric ProtectionFull Cassette
Mode of OperationSomfy Motor
Retractable ValanceNot Available
Fabric Options100% Solution Dyed Acrylics
* Color Swatch is for Reference Only.
