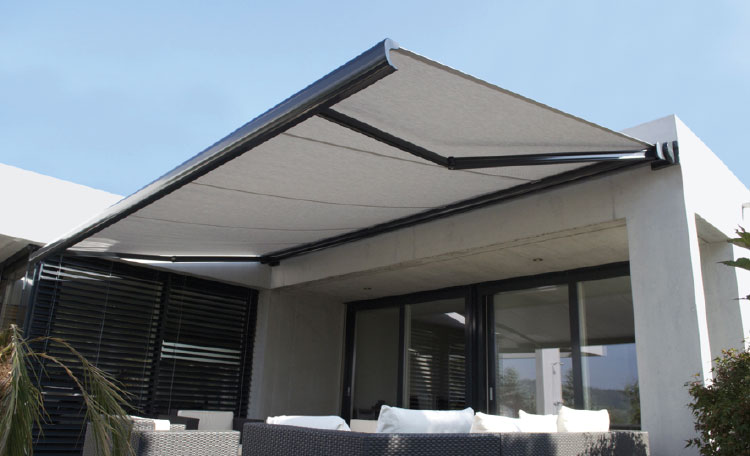

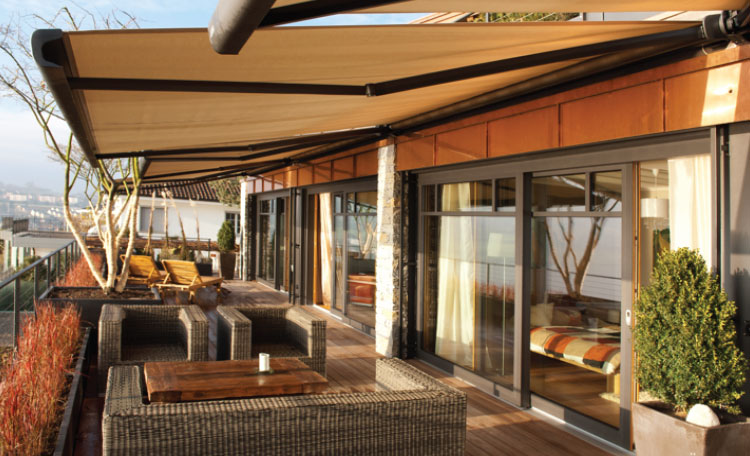

The medium size Tendabox folding arm awning offers an appealing design that is the ideal architectural compliment to any home or business. The compact dimensions of the system with a completely sealed full-cassette housing makes it especially suitable for wall or soffit mounting on patios, decks, large balconies, and even boat decks. Mounting brackets on each end of the system make the installation quick and easy.
A lateral rotating mechanism allows for very steep pitch capability. The elegant cassette with brush sealing on the top and bottom protects the awning against wind and weather when retracted thus guaranteeing a long life to the overall system.
The unit features a standard drive with an easy running bevel gear box and hand crank or opitonal Somfy Motors and Electronic Controls.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Linear Width | 4'6" - 21' |
| Projection | 3'4", 5', 6'6", 8'2", 9'10", 11'5", 13'1" |
| Frame Finish | Polyester Powder Coated |
| Frame Colors* | White  (Custom Colors-Upcharge) |
| Mounting Options | Wall, Soffit, Roof | Arm Type | Folding Arm - S.S. Double Cable | Roller Tube | 78mm |
| Pitch Adjustment | 0º - 76º |
| Fabric Protection | Full Cassette |
| Mode of Operation | Manual Bevel Gear or Somfy Motor |

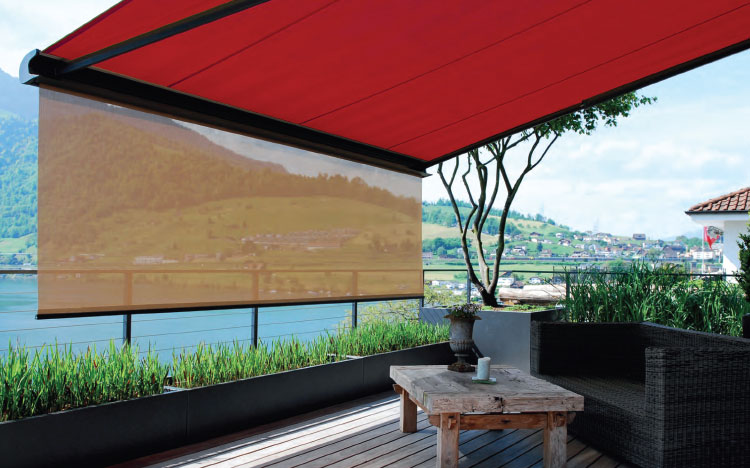

| Retractable Valance | Motorized Operation Available |
| Fabric Options | 100% Solution Dyed Acrylics |
